Cisco RV042 4-port Fast Ethernet VPN Router-Dual WAN

Your Price:
$170.98 (You save $59.02)
4.00 LBS
Usually ships within two business days
Calculated at checkout
Bookmark and Share

Product Description

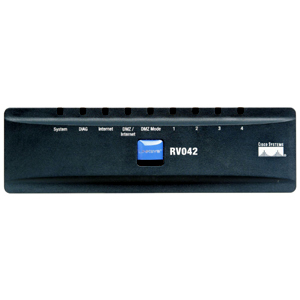

The Cisco® RV042 Dual WAN VPN Router (Figure 1) is an advanced connection-sharing network solution for your small business needs. Like any router, it lets multiple computers in your office share a connection to a public or private network. However, with dual WAN ports, the Cisco RV042 lets you use a second connection as a backup to help you stay connected, or it can be used to access a second provider to increase available bandwidth and balance traffic.

The VPN capability creates encrypted “tunnels” through the Internet, based on IP Security (IPsec) or Point-to-Point Tunneling Protocol (PPTP), allowing up to 50 remote offices or traveling users to securely connect into your office network from offsite. Users connecting through a VPN tunnel are attached to your company’s network -- with secure access to files, email, and your intranet -- just as if they were in the building. You can also use the VPN capability to allow users on your small
office network to securely connect to a corporate network.

Source: Extracts from the manufacture product datasheet, © 2008 Cisco Systems Inc. All rights reserved.


  • SPI firewall for maximum security
  • Two WAN ports for load-balanced connectivity to the Internet
  • 4-port 10/100 switch supports automatic medium dependent interface (MDI) and MDI crossover (MDI-X) and up to 200 Mbps of throughput per port
  • Full IPsec VPN capability using Data Encryption Standard (DES), Triple DES (3DES), and Advanced Encryption Standard (AES) encryption algorithms

  • Allows up to 50 simultaneous IPsec and 5 PPTP VPN tunnels

datasheet-tab-blk.png Adobe_Acrobat.jpg

Warranty Information

Manufacturer Limited Warranty: 3-year

Other Details

Product Type:
Router Appliance
Connectivity Media:
Category 5 UTP 10/100Base-TX
Standards Protocol:
IEEE 802.3, 802.3u
Four 10/100 RJ-45 ports, One 10/100 RJ-45 Internet port, One 10/100 RJ-45 DMZ/Internet ports
NAT/ IPsec throughput:
100 Mbps/ 59 Mbps
Security Firewall:
SPI firewall
Security Filtering:
Static URL blocking or keyword blocking, Dynamic filtering through the ProtectLink Gateway Security Service (optional)
Dual WANs:
Can be configured for Smartlink backup or load balance
Network Support:
DHCP server, DHCP client, DNS proxy, Dynamic DNS (DynDNS, 3322, PeanutHull), NAT, DMZ port, DMZ host, Routing Static and RIP versions 1 and 2
Management via Web, Telnet, SNMP, Setup Wizards make setup easy for Administrators
QoS Port Based:
Configurable per LAN port
Service-based QoS:
Supports rate control or priority
VPN IPsec:
50 IPsec tunnels for branch office connectivity
50 QuickVPN users for remote client access
DES, 3DES, AES-128, AES-192, AES-256
IPsec NAT Traversal :
Supported for gateway-to-gateway and client-to-gateway tunnels
VPN pass-through:
PPTP, Layer 2 Tunnelling Protocol (L2TP), IPsec
Input Power:
12V 1A
Temperature :
0ºC to 40ºC (32ºF to 104ºF) Operating
10% to 85% noncondensing
Dimensions H x W x D:
5.12" x 7.87" x 1.52"
